The falafel frying machine is an industrial continuous mesh belt fryer designed specifically for high-volume production of falafel balls, patties, and other Middle Eastern fried specialties. It processes 100-800 kg/h of falafel, chickpea patties, vegetable croquettes, and other battered or breaded products, delivering consistently golden, crispy results with uniform texture and color. The machine integrates seamlessly into automatic falafel production lines, handling the critical frying stage after forming and coating processes.
Unlike batch fryers that require manual loading and unloading, this continuous system features automatic mesh belt conveying that moves products through precisely controlled oil temperature zones. The result is higher throughput, reduced labor costs, and standardized product quality that meets commercial food service specifications. Built with food-grade 304 stainless steel and available with both electric and gas heating options, this falafel fryer serves Middle Eastern restaurants, falafel shops, central kitchens, and frozen food manufacturers worldwide.
The advanced oil-water separation technology automatically filters and removes food particles during operation, extending oil life by 30-40% compared to conventional fryers. The middle-layer heating system effectively alleviates oil oxidation and improves fried product quality. Taizy Machinery has manufactured industrial frying equipment for over 20 years, with falafel fryers exported to the Middle East, Europe, the USA, and Southeast Asia. Our machines carry CE certification and comply with international food safety standards.
Falafel Frying Machine Specifications
Our falafel fryers come in six standard models to match different production scales. The TZ-2500 is our best-selling entry-level model for small-to-medium operations, while larger models accommodate industrial-scale production.
| Người mẫu | Kích thước (mm) | Chiều rộng băng tải (mm) | Công suất (kg/h) | Temperature (°C) | Công suất (kW) | Điện áp | Loại sưởi | Vật liệu |
|---|---|---|---|---|---|---|---|---|
| TZ-2500 (Bán chạy nhất) | 2500×1000×1300 | 400 / 500 / 600 | 100–300 | 0–300 | 48 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
| TZ-D3000 | 3000×950×2200 | 800 | 100–300 | 0–300 | 48 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
| TZ-D4000 | 4200×960×2400 | 800 | 200–400 | 0–300 | 75–96 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
| TZ-D5000 | 5000×950×2400 | 800 | 300–500 | 0–260 | 96–120 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
| TZ-D6000 | 6200×1100×2400 | 1000 | 400–600 | 0–260 | 120–160 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
| TZ-D8000 | 8000×1100×2600 | 1000 | 300–800 | 0–260 | 180–260 | 380V, 50Hz, 3 pha | Điện / Gas | Thép không gỉ 304 |
Key Notes:
- TZ-2500 (Best Seller): Compact 2.5m length with customizable mesh belt widths (400/500/600mm), ideal for small falafel shops and restaurant chains entering commercial production.
- Standard Configuration: All models use 380V 50Hz three-phase power and 304 food-grade stainless steel construction.
- Flexible Heating: Choose electric heating for precise temperature control or gas heating for lower operating costs.
- Custom Sizing: Non-standard dimensions available to fit your facility layout and production requirements.
Các tính năng chính & Ưu điểm cạnh tranh
Oil-Water Separation Technology
The advanced oil-water separation system automatically filters and removes food particles during operation. Food residue sinks through the water layer to the bottom funnel and discharges through the sewage outlet. This innovative system keeps frying oil clean throughout production, extending oil life by up to 40% while ensuring consistent falafel quality.
Precise Temperature Control (±1°C)
The PID temperature control system maintains oil temperature within ±1°C of the setpoint, critical for achieving a consistent golden color and proper internal cooking of falafel. The middle-layer heating method effectively controls upper and lower oil layer temperatures, alleviating oil oxidation. Temperature range: 0-300°C freely adjustable.

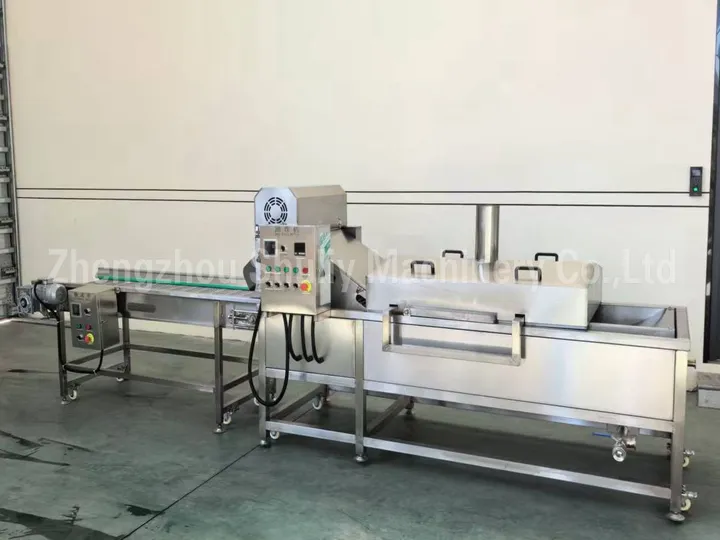

Dual Heating Options: Electric or Gas
Sưởi điện: Nóng nhanh hơn, kiểm soát chính xác, lý tưởng cho khu vực có điện ổn định và khí gas thấp hơn.
- Sưởi bằng khí (Khí tự nhiên/LPG): Chi phí vận hành thấp hơn 40-50% ở các khu vực có nguồn khí giá rẻ, phù hợp cho sản xuất liên tục quy mô lớn.
- Băng tải lưới tốc độ biến đổi (điều chỉnh 0.5-3 m/phút) kiểm soát thời gian chiên dựa trên độ dày và loại lớp phủ của sản phẩm. Băng tải xoắn ốc xử lý các sản phẩm bọc bột không dính, trong khi băng tải loại B phù hợp với các sản phẩm bọc bột nặng hơn. Cơ chế nâng nâng toàn bộ băng tải để vệ sinh sâu và bảo trì.
Automatic Mesh Belt Conveying System
The variable-speed mesh belt (0.5-3 m/min adjustable) controls frying time based on product size and coating type. Double-layer mesh belt design prevents the product from floating and ensures uniform frying. The automatic lifting system raises the entire conveyor for deep cleaning and maintenance access.
Lọc tự động & Loại bỏ cặn
The dynamic circulation system with an automatic sewage outlet continuously filters oil and removes debris. The automatic slag removal system eliminates manual cleaning downtime, maintaining consistent frying quality without production interruptions.
Automatic Smoke Exhaust System
Built-in smoke exhaust system removes frying fumes, maintaining clean air quality in your production facility and ensuring compliance with environmental regulations.
Cấu trúc & Thành phần máy
| Thành phần | Mô tả |
|---|---|
| Buồng chiên | Double-layer 304 stainless steel with fiber insulation; oil-water separation design |
| Conveying System | Variable-speed double-layer mesh belt with reducer motor; prevents product floating |
| Hệ thống sưởi | Variable-speed double-layer mesh belt with reducer motor; prevents product from floating |
| Điều khiển nhiệt độ | PID controller with thermocouple sensors; 0–300°C range; ±1°C precision |
| Lọc dầu | Dynamic circulation system with automatic sewage outlet and water layer filtration |
| Smoke Exhaust | Integrated exhaust system for efficient fume removal |
| Lifting System | Automatic mesh belt lifting for easy cleaning and maintenance |
| Tủ điện | IP65 rated with emergency stop and overload protection |
How the Falafel Frying Machine Works?

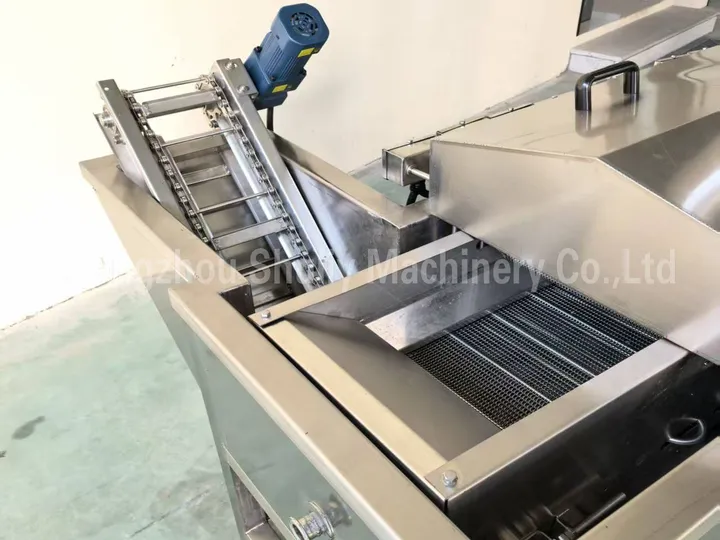

Tải sản phẩm: Gà viên bột và chiên giòn được phân bổ đều lên băng tải vào, bằng tay hoặc từ máy phủ lớp phủ phía trên.
- Product Loading: Formed falafel balls or patties are evenly distributed onto the inlet conveyor, either manually or from an upstream forming machine.
- Submersion Frying: The double-layer mesh belt carries products through the oil bath at a controlled speed, preventing floating and ensuring uniform frying.
- Temperature Control: Middle-layer heating maintains optimal frying temperature (typically 175-190°C for falafel) with ±1°C precision.
- Oil Filtration: The oil-water separation system continuously filters oil through the water layer, removing particles while maintaining temperature uniformity.
- Loại bỏ xỉ: Food residue sinks to the bottom of the funnel and automatically discharges through the sewage outlet.
- Discharge: Finished falafel exits via the outlet conveyor with a consistent golden color and crispy texture.
Total frying time ranges from 3-5 minutes, depending on product size, density, and temperature settings.
Ứng dụng & Sản phẩm tương thích
While optimized for falafel, this fryer handles diverse products:
Middle Eastern Specialties
- Falafel balls and patties
- Kibbeh (fried bulgur wheat croquettes)
- Sambousek (fried pastries)
- Cheese rolls
Other Applications
- Vegetable croquettes
- Bean patties
- Breaded mushrooms
- Vòng hành tây
- French fries
- Breaded seafood
Target Industries
- Middle Eastern restaurants
- Falafel shops and chains
- Vegetarian/vegan food producers
- Bếp trung tâm
- Frozen food manufacturers
- Các công ty dịch vụ ăn uống
Falafel Production Line Integration
This fryer integrates as the core component of a complete falafel production line:
- Soaking & Grinding – Chickpeas soaked and ground into paste
- Mixing & Seasoning – Ingredients mixed with herbs and spices
- Forming Machine – Shapes falafel balls or patties
- Coating (Optional) – Light batter or breadcrumb coating
- Falafel Frying Machine – Fries to golden perfection (this machine)
- Air Cooling/Deoiling – Removes excess oil and cools
- Bao bì – Weighs and packs finished products

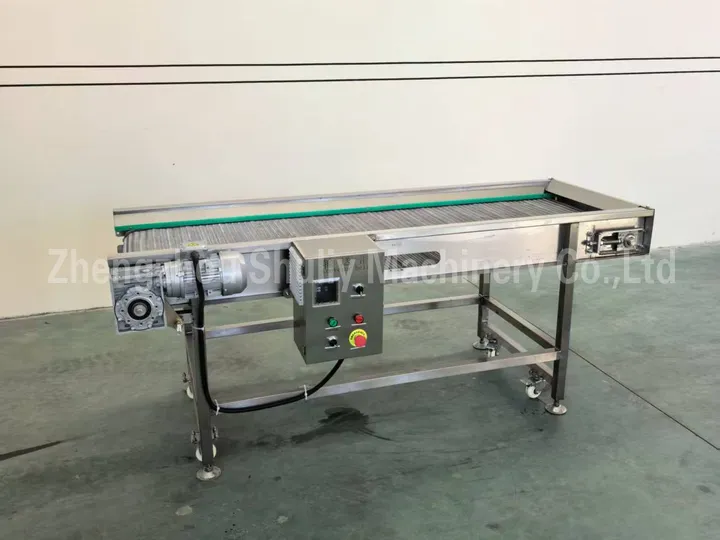

Băng tải
Why Choose Taizy Falafel Fryers?
Manufacturing Expertise
- Sản phẩm đạt chứng nhận CE phù hợp tiêu chuẩn an toàn EU
- Hệ thống quản lý chất lượng ISO 9001
- Xuất khẩu sang hơn 50 quốc gia, bao gồm Mỹ, Đức, Anh, Úc, Nhật Bản
- Exported to 50+ countries, including the Middle East, Europe, the USA, and Australia
Comprehensive Support
- Hỗ trợ kỹ thuật trọn đời kèm hướng dẫn qua video
- Hướng dẫn lắp đặt và đào tạo vận hành
- Kho dự trữ phụ tùng với vận chuyển trong 48 giờ
- Hỗ trợ đa ngôn ngữ: Tiếng Anh, Tây Ban Nha, Pháp, Ả Rập
- Multilingual support: English, Arabic, French, Spanish
Customization Services
- Cấu hình điện đặc biệt (220V/415V/480V)
- Các tính năng bổ sung: cảm biến mức dầu, tự động bổ sung, làm sạch CIP
- Additional features: oil level sensors, automatic top-up
- Integration with forming and packaging equipment
Supportive Equipment: Vacuum Oil Filter
Máy chiên falafel có thể được kết nối với bộ lọc dầu chân không để làm sạch hoàn toàn dầu để tái sử dụng.
Câu hỏi thường gặp
What is the ideal frying temperature for falafel?
The optimal frying temperature for falafel is 175-190°C (350-375°F). This range ensures the exterior develops a golden, crispy crust while the interior cooks through without drying out. Our fryers maintain temperature within ±1°C for consistent results.
How long does it take to fry falafel in this machine?
Frying time typically ranges from 3-5 minutes, depending on ball/patty size, density, and temperature. The variable-speed conveyor allows precise time control—standard 30g falafel balls at 180°C require approximately 3.5-4 minutes.
Tôi nên chọn sưởi điện hay gas?
Choose electric heating if you prioritize precise temperature control and have a stable electricity supply. Choose gas heating if natural gas or LPG is affordable in your region—gas typically reduces operating costs by 40-50% for high-volume operations. Both options provide identical frying performance.
How does the double-layer mesh belt prevent floating?
The upper mesh belt gently holds products submerged in the oil, preventing lightweight falafel balls from floating to the surface. This ensures even frying on all sides without manual intervention.
Bảo trì máy chiên cần những gì?
Daily: Clean debris from the mesh belt and empty the sludge collector. Weekly: Filter or replace oil; inspect heating elements. Monthly: Deep clean oil tank; check conveyor belt tension; inspect electrical connections. The lifting system allows full access for thorough cleaning.
Thời gian giao hàng và quy trình lắp đặt là gì?
Các mẫu tiêu chuẩn giao hàng trong vòng 15-20 ngày sau khi xác nhận đơn hàng. Các mẫu tùy chỉnh cần 25-30 ngày. Chúng tôi cung cấp hướng dẫn lắp đặt chi tiết và video hướng dẫn. Dịch vụ lắp đặt tại chỗ có phí bổ sung. Hầu hết khách hàng tự lắp đặt trong 1-2 ngày với hỗ trợ từ xa của chúng tôi.
Nhận báo giá tùy chỉnh của bạn hôm nay
Ready to upgrade your falafel production? Contact us with your requirements:
- Các loại sản phẩm (gà viên, strips, gà popcorn, v.v.)
- Product types (falafel balls, patties, other items)
- Phương pháp làm nóng ưa thích (điện/gas)
- Yêu cầu điện áp
- Máy Chiên Gà Viên Công Nghiệp
- Need for forming machine or other equipment
Request your free quote today and discover how continuous frying technology can transform your falafel production!
