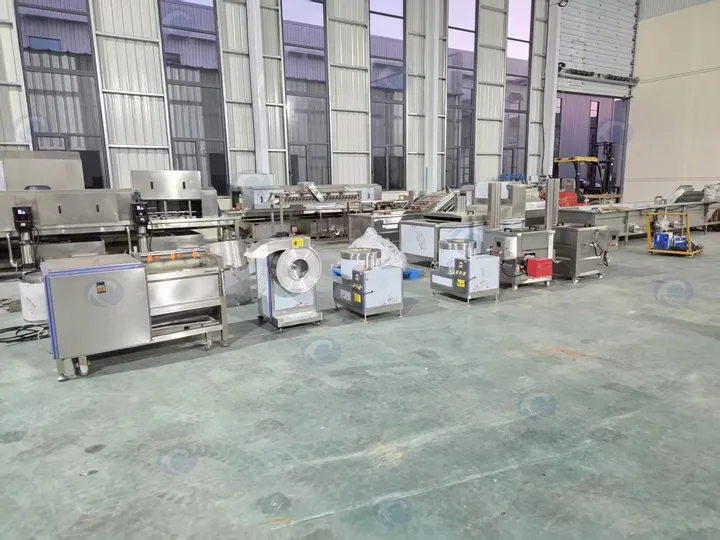

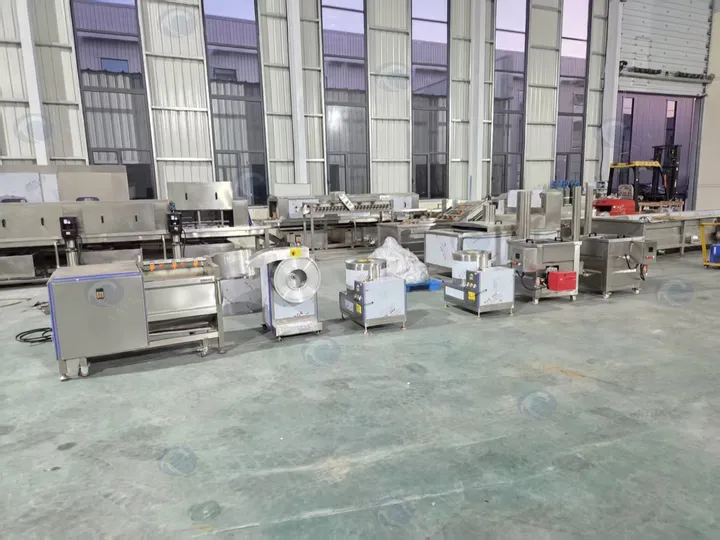

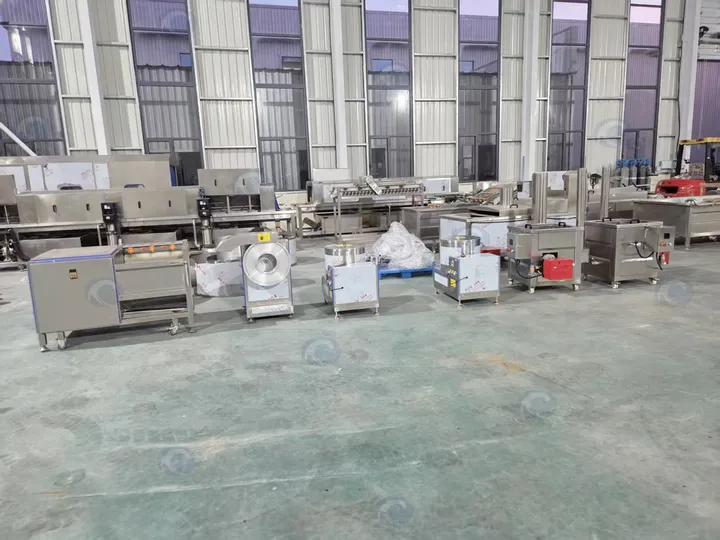

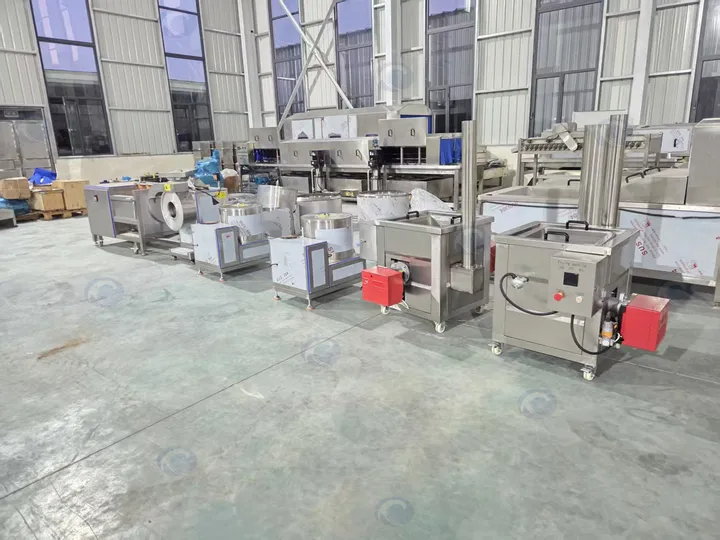

The semi-automatic potato chip production line is a specialized potato chip-making machine designed for small to medium-scale potato chip processing operations. It primarily solves the challenges of high labor costs and inconsistent product quality faced by startups and small food factories, featuring 50-100 kg/h production capacity and food-grade 304 stainless steel construction as its core technical advantages. Compliant with international food safety standards, this small-scale potato chip processing equipment is the ideal choice for entrepreneurs and small-scale manufacturers seeking to establish efficient and profitable potato chip production operations.
How Does a Semi-automatic Potato Chip Production Line Work?
The complete workflow of this semi-automatic potato chip production line follows this sequence:
Feeding Elevator → Washing & Peeling Machine → Manual Sorting Conveyor → Elevator → Slicing Machine → Washing Machine → Blanching Machine → Vibrating Dewatering Machine → Elevator → Frying Machine → Vibrating Deoiling Machine → Air Cooling Conveyor → Elevator → Seasoning Machine → Electronic Scale → Sealing & Packaging Machine
What Are the Technical Specifications of a Semi-automatic Potato Chip Production Line?
| Equipment Name | Modelo | Fuerza | Capacidad | Material / Features |
|---|---|---|---|---|
| Potato Washing & Peeling Machine | TZ-300 | 0.55 kW | Fecha de instalación | 304 stainless steel, integrated washing and peeling, compact structure |
| Potato Chip Slicer | TZ-600 | 0.75 kW | 300–600 kg/h | Uniform slicing, excellent cutting effect, suitable for fries and chips processing |
| Electric Blanching Machine | TZ-500 | 12 kW | 50 kg/h | 304 stainless steel, removes starch, protects color, improves product shape |
| Vibrating Dewatering Machine | TZ-400 | 1.5 kW | Fecha de instalación | High-efficiency dewatering, reduces frying oil consumption |
| Electric Frying Machine | TZ-500 | 12 kW | 50 kg/h | 304 stainless steel, stable temperature control system |
| Vibrating Deoiling Machine | TZ-400 | 1.5 kW | Fecha de instalación | Efficient oil removal for less greasy and healthier products |
| Rotary Seasoning Machine | TZ-800 | 1.5 kW | Fecha de instalación | Uniform mixing and seasoning, stable flavor consistency |
| Electronic Scale | TZ-211 | — | Max. 40 kg | Accurate weighing, suitable for quantitative packaging |
| Continuous Sealing Machine | TZ-200 | Motor: 50W / Sealing: 600W | 0–12 m/min | 10 mm sealing width, adjustable temperature from 0–300°C |
What Machines Are Included in a Semi-automatic Potato Chip Production Line?
The line consists of purpose-built machines, each optimized for a specific stage of chip production:

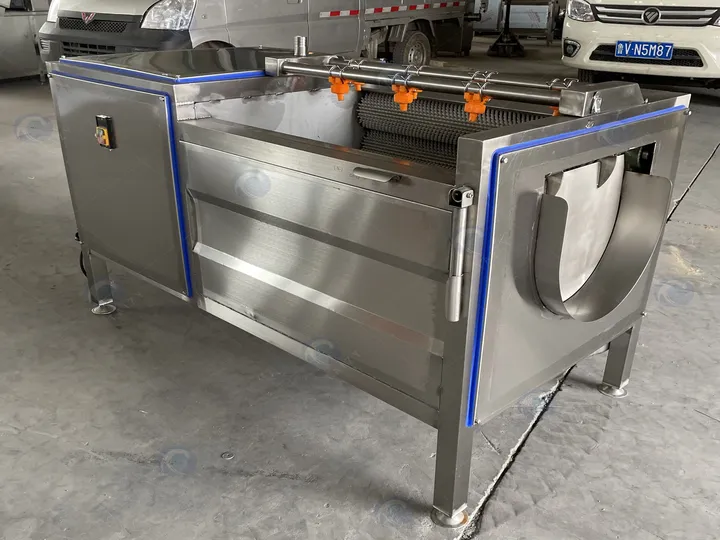

Potato Washing and Peeling Machine (TZ-300)
This unit combines abrasive peeling with high-pressure washing in a single pass. The 0.55 kW motor drives a rotating drum lined with food-safe peeling abrasive. It processes up to 300 kg of raw potatoes per hour, removing skin efficiently without excessive flesh loss. The compact footprint makes it suitable for facilities with limited space.

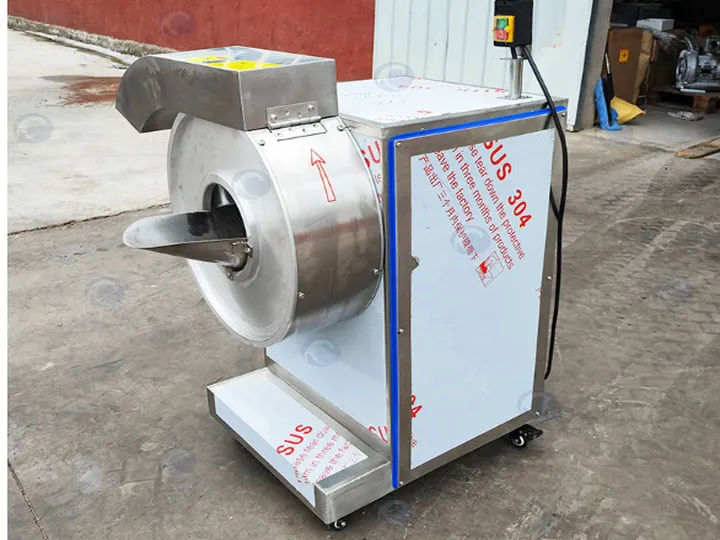

Potato Chip Slicer (TZ-600)
Powered by a 0.75 kW motor, this slicer delivers uniform cuts at 300–600 kg/h input capacity. The cutting blade assembly is adjustable, allowing operators to set slice thickness according to product specifications. Consistent slice geometry ensures even frying and uniform appearance in the final package.

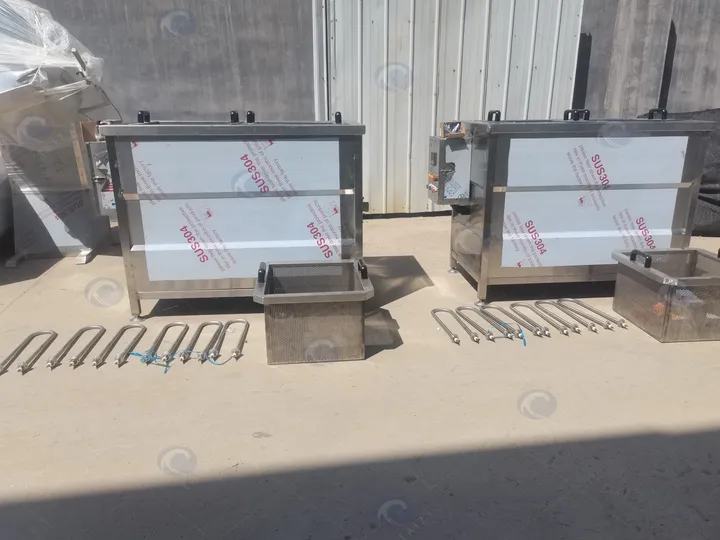

Electric Blanching Machine (TZ-500)
Operating at 12 kW, this 304 stainless steel blanching unit removes surface starch and enzyme activity that would otherwise cause browning and sticking during frying. The water temperature and dwell time are adjustable, giving operators control over color fixation and pre-cooking degree.
Vibration Dewatering Machine (TZ-400)
After blanching, excess surface moisture must be removed to prevent dangerous oil splatter and reduce frying load. This 1.5 kW vibratory shaker rapidly sheds water through a perforated stainless steel deck, preparing slices for the fryer at up to 300 kg/h.

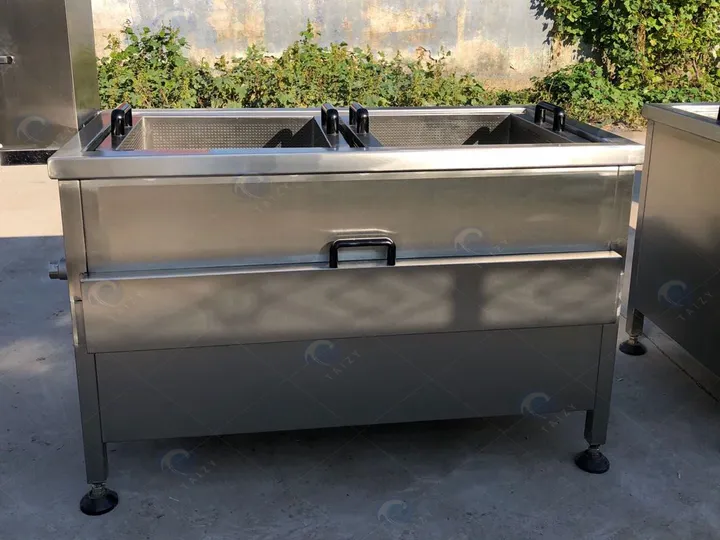

Electric Frying Machine (TZ-500)
The 12 kW fryer maintains precise oil temperature through thermostatic control. Its 50 kg/h chip capacity matches the line’s standard output. The tank geometry promotes even heat distribution, while a sediment zone collects particulates to extend oil life.

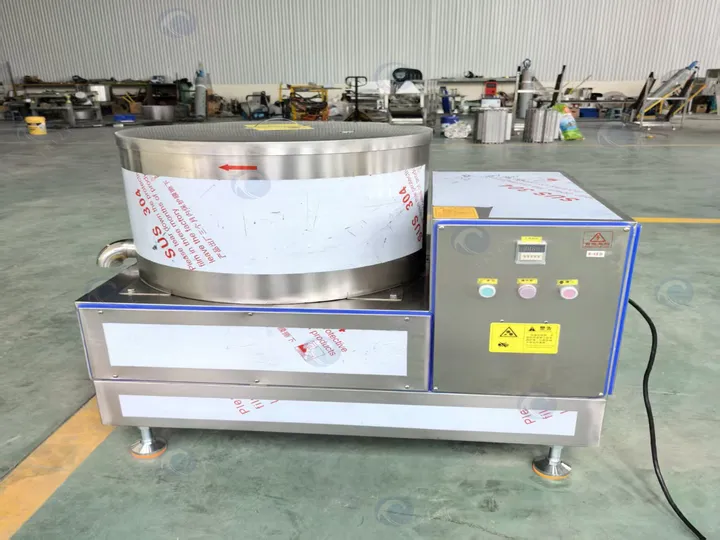

Máquina desengrasante por vibración (TZ-400)
Post-fry, chips carry significant surface oil. This second 1.5 kW vibratory unit removes excess oil through rapid shaking, yielding a cleaner, crisper product with reduced fat content and longer shelf stability.

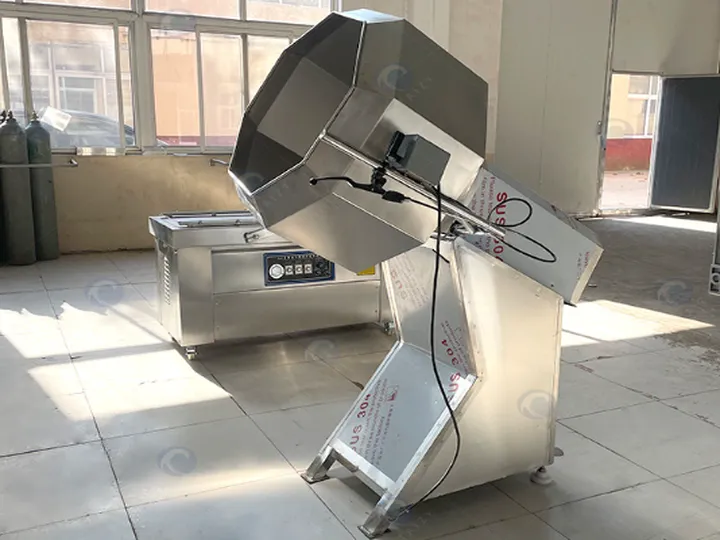

Drum Seasoning Machine (TZ-800)
A rotating stainless steel drum with internal flights tumbles chips while liquid or powder seasoning is applied. The 1.5 kW drive handles 300 kg/h, ensuring homogeneous coating without clumping or breakage.

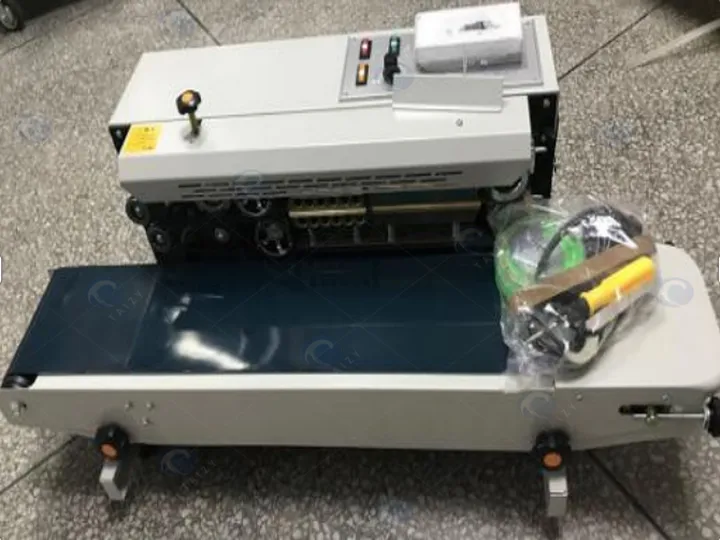

Continuous Sealing Machine (TZ-200)
This band sealer operates at 0–12 meters per minute, with a 10 mm seal width and temperature adjustable from 0 to 300°C. It creates airtight, professional packages suitable for shelf display.
What Raw Materials Can This Potato Chip Processing Line Handle?
This semi-automatic potato chip-making machine primarily processes fresh potatoes, including varieties such as Atlantic, Snowden, and Russet Burbank, which are favored in the snack industry for their low reducing-sugar content and favorable dry-matter ratios.
Applicable industries and settings include:
- Small and medium food processing plants
- Startup snack manufacturing ventures
- School and institutional cafeterias
- Hotel and restaurant central kitchens
- Small-scale export-oriented production facilities
Why Choose a Semi-automatic Potato Chip Making Line?
| Característica | Shuliy Semi-automatic Line | Typical Competitor Offering |
|---|---|---|
| Material Grade | Full SUS304 stainless steel construction | Mixed 201/304 stainless steel or partial carbon steel |
| Heating Flexibility | Electric heating standard, gas heating optional | Often electric heating only |
| Voltage Customization | Configured according to local national standards | Usually limited to factory default voltage |
| Pre-shipment Testing | Complete machine trial run with video documentation | Basic visual inspection only |
| Documentation | English operation manual and machine operation videos provided | Manual only, often not available in English |
| Warranty Period | 24-month warranty support | Typically 12-month warranty |
Key Value Points
- Integrated Workflow: From dirty potato to sealed bag on one continuous line, minimizing handling and contamination risk.
- Modular Design: Individual machines can be added, removed, or upgraded as production scales.
- Energy Efficiency: The two-stage dewatering and deoiling system reduces oil consumption and heating load.
- Operator Safety: Enclosed fryer tanks, emergency stops, and insulated surfaces protect workers.
- Low Learning Curve: Simple control panels and mechanical reliability mean local staff can operate after minimal training.
How the Semi-automatic Potato Chip Production Line Works?
Understanding the internal workflow helps operators optimize output and troubleshoot effectively:
- Intake and Cleaning: Raw potatoes enter the washing and peeling drum. Rotating action scrubs away soil while abrasive surfaces remove the skin. A water spray system flushes debris out of the machine.
- Inspection and Slicing: Operators perform a brief visual sort on the transfer conveyor to remove defective tubers. Accepted potatoes feed into the slicer, where a rotating blade disk cuts them to uniform thickness.
- Starch Removal and Blanching: Slices pass through a water bath heated to 80–90°C. This gelatinizes surface starch, fixes natural color, and partially cooks the potato to reduce frying time.
- Surface Drying: The vibratory dewatering stage shakes off loose water, preventing temperature drop and foaming when slices enter hot oil.
- Frying: Slices submerge in oil held at 170–180°C. Moisture flashes off rapidly, creating the characteristic porous, crispy structure. Residence time is controlled by conveyor speed.
- Oil Stripping: Immediately upon exiting the fryer, hot chips pass over the deoiling shaker. Centrifugal force and vibration pull away excess surface fat.
- Cooling and Seasoning: Ambient air cools chips to a temperature safe for seasoning adhesion. The rotating drum then applies salt, flavor powders, or oil-based coatings evenly.
- Weighing and Packaging: The electronic scale portions product into target weights, and the continuous band sealer forms airtight packages ready for distribution.
Common Production Pain Points and Engineered Solutions
| Pain Point | Consequence | Shuliy Solution |
|---|---|---|
| Uneven slice thickness | Inconsistent frying, burnt edges, and undercooked centers | Precision blade adjustment system with locking mechanism ensures uniform slicing |
| High oil retention | Greasy products, reduced shelf life, and increased oil consumption | Dedicated vibrating deoiling machine removes excess surface oil after frying |
| Starch buildup in fryer | Faster oil degradation, off-flavors, and increased maintenance downtime | Pre-frying blanching process removes surface starch before frying |
| Seasoning clumping | Uneven taste distribution and customer complaints | Rotary seasoning drum with internal lifting flights provides even tumbling and coating |
| Complex operator training | High labor turnover and unstable production quality | Simple mechanical control system without complicated PLC programming |
Why Choose Taizy Machinery?

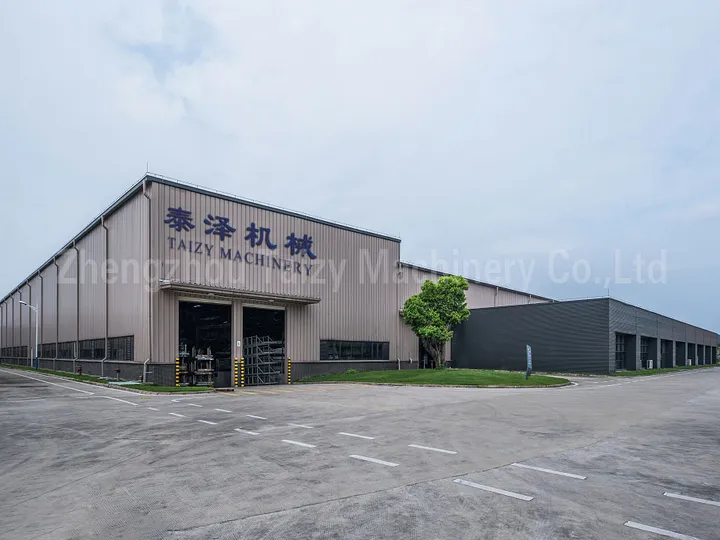

Taizy has manufactured food processing equipment since the early 2000s, serving clients in over 80 countries. The production facility holds ISO 9001 quality management certification, and equipment carries CE marking for European market access.
After-Sales Commitment:
- 24-Month Warranty: Covers manufacturing defects and component failures under normal use.
- Lifetime Technical Support: Engineers available via video call, email, and messaging platforms.
- Multilingual Service Team: English, French, Spanish, and Arabic support for global clients.
- Spare Parts Supply: Critical wear parts stocked for rapid dispatch, minimizing downtime.
Preguntas frecuentes
What is the actual floor space required for the complete line?
A typical layout occupies approximately 15 meters by 4 meters, though configurations can be adjusted to fit existing buildings. Shuliy provides layout drawings based on your facility dimensions.
Can this line produce French fries instead of potato chips?
Yes. The slicer blade assembly can be swapped for a strip-cutting blade, and fryer dwell time can be extended. Many clients run both products on the same line with minimal changeover.
Is gas heating more economical than electric?
In regions where natural gas or LPG is inexpensive relative to electricity, gas heating reduces operating cost. However, electric heating offers simpler installation and more precise temperature control. Shuliy can advise based on your local energy pricing.
How long does installation and commissioning take?
With the English manual and video provided, a local technician can complete mechanical assembly in 2–3 days. Shuliy also offers remote video guidance during first startup.
What is the production lead time?
Standard configuration ships within 10–25 days after deposit. Custom voltage or gas heating modifications may extend this slightly.
