An automatic popcorn production line is the equipment for the modern production of various kinds of popcorn, which saves time and effort. The puffing technology of the industrial popcorn making machine is an effective combined application of temperature and hot air circulation, with high thermal efficiency, low production cost, high degree of automation, simple operation, environmental protection, and no noise.
The quality of popcorn of the automatic popcorn processing line is stable, the spherical forming rate is high, the sugar is evenly coated, and the formula is easy to adjust. The taste of the finished product can be adjusted, such as original flavor, caramel flavor, fruit flavor (like the strawberry flavor), coconut flavor, chocolate flavor, etc.
This popcorn production line can produce 2–4 tons per day (based on 12 hours), making it ideal for small and medium-sized businesses. If you need a larger or smaller capacity line, Taizy can customize the machines for you. You are welcome to contact us for a production plan.
자동 팝콘 생산 라인 개요
The automatic popcorn production line adopts a modular design and can be adjusted according to the customer’s factory, the production in a variety of ways.
This set of popcorn manufacturing machines uses electromagnetic heating, which is energy-saving and environmentally friendly, and realizes automatic temperature control, automatic stirring, and automatic discharging.
These characteristics of the commercial popcorn production line make the process more convenient and efficient, and greatly reduce the labor intensity of the workers. Diverse types of popcorn can be made to meet different demands, and caramel popcorn, chocolate popcorn, and fruit popcorn are among the popular products. You can also choose the shape of the popcorn, such as ball, mushroom, or snowflake.
Applications of an automatic popcorn production line
- Food processing factories: Used for large-scale production of plain, sweet, caramel, and flavored popcorn.
- Snack food factories: Suitable for continuous production of bagged and canned popcorn for supermarkets and online sales.
- Cinema and theme park supply: Centralized production to supply cinemas and amusement parks with consistent quality.
- Baking and confectionery factories: Used as ingredients or decorations for cakes, desserts, and chocolate products.
- Central kitchens and food distribution centers: For standardized commercial popcorn production and unified distribution to outlets.
- Export-oriented food manufacturers: For the mass production of packaged popcorn that meets international food safety standards.
Working videos of the automatic popcorn production line
자동 팝콘 가공 라인의 주요 기계
Processing:
Popcorn making machine – Cooling conveyor machine – Rotary drum screening machine
Machine list:
| 주문하다 | 목 | 수량 |
| 1 | 팝콘 만드는 기계 | 2 |
| 2 | 냉각 컨베이어 기계 | 1 |
| 3 | 회전식 드럼 스크리닝 기계 | 1 |
팝콘 만드는 기계
The popcorn manufacturing machine is used to pop the corn raw material in the automatic popcorn production line. The industrial popcorn machine has the functions of automatic temperature control, automatic mixing, and automatic discharge. Using electromagnetic heating is energy-saving. It can pop 240kg-300kg of popcorn each hour.
| 기계 모델 | TZ-CZ90XJB-DC |
| 기계 크기 | 1380*1610*1590mm |
| 효과적인 작업 크기 | Φ900mm |
| 총 중량 | 600kg |
| 힘 | 43kw |
| 전기 공급 | 380V 50HZ |
냉각 컨베이어 기계
The cooling conveyor belt carries the popcorn from the cooking wok to cool it down and convey the popcorn to the rotary drum screening machine. The axial flow fans use a special wind box structure that can quickly cool the popcorn to the desired temperature. Conveyor mesh belt is a stainless steel plate type with uniformly distributed holes, and the mesh belt speed is adjustable.
| 기계 모델 | TZ-WS60/700 |
| 기계 크기 | 7200×1050×1610mm |
| 효과적인 작업 크기 | 6900×550mm |
| 힘 | 1.2KW |
| 전기 공급 | 380V 50HZ |
회전식 드럼 스크리닝 기계
회전 드럼은 나선형 방식으로 재료를 운반합니다. 익히지 않은 옥수수, 옥수수겨 및 기타 작은 잔여물을 걸러낼 수 있습니다. 벨트 전동 방식을 사용하여 작동 중 회전 및 미끄러짐을 방지합니다.
| 기계 모델 | WS90/260 |
| 기계 크기 | 2900×1100×1870mm |
| 효과적인 작업 크기 | Φ900×2700mm |
| 힘 | 0.55KW |
3D design drawing of the popcorn production line
판매용 산업용 팝콘 제조기의 특징
1. 균일하고 아름다운 팝콘 모양. 원료가 터져 나와 큰 공 모양으로 부풀어 오릅니다.
2. 높은 옥수수 팝핑률. 팝핑률은 거의 100%입니다. 원료의 이용률을 크게 향상시키고 재료 비용을 절감하며 비용을 절감하여 이익을 늘립니다.
3. 지능형 제어 및 간편한 작동. 적합한 매개변수를 설정하면 자동 팝콘 생산 라인에서 다양한 종류의 원료를 처리할 수 있습니다. 생산 공정에는 수동 제어가 필요하지 않습니다. 교반 속도를 설정하면 팝콘 생산 라인이 일정한 속도를 유지하여 일관된 제품 품질을 보장합니다.
4. 높은 자동화 수준. 자동 팝콘 가공 라인의 출력은 단일 기계 작동보다 몇 배나 높으며, 온도 및 시간 장비가 통합되어 있으며, 공급 및 배출이 한 번에 완료됩니다.
5. 높은 전자기 열 변환율 및 에너지 절약. 지능형 난방 시스템은 불필요한 낭비열을 방지하고 비용을 절감하며 수익 마진을 확대합니다.
4. Wide use, suitable for diverse raw material varieties. It can reduce the costs of raw materials and improve the profit.
산업용 팝콘 기계 가격
There are many models and types of industrial popcorn making machines in the automatic popcorn production line, and the prices for different types of products are also different. The cost and process of mechanical products are also important factors that affect the price. Cost includes the sum of a series of inputs, such as labor input for machining, the input of raw materials, the input of technology, and the input of transportation costs. We will recommend suitable machines according to the different needs of customers. If customers have special needs, we can provide customized services.
Taizy Machinery is a leading food processing machinery manufacturer with over 10 years of industrial experience. Our company provides a complete series of popcorn-making machines and supporting equipment. Meanwhile, we also offer comprehensive and considerate services to each customer. Welcome to contact us for a favorable quotation and professional advice.
Shipping case

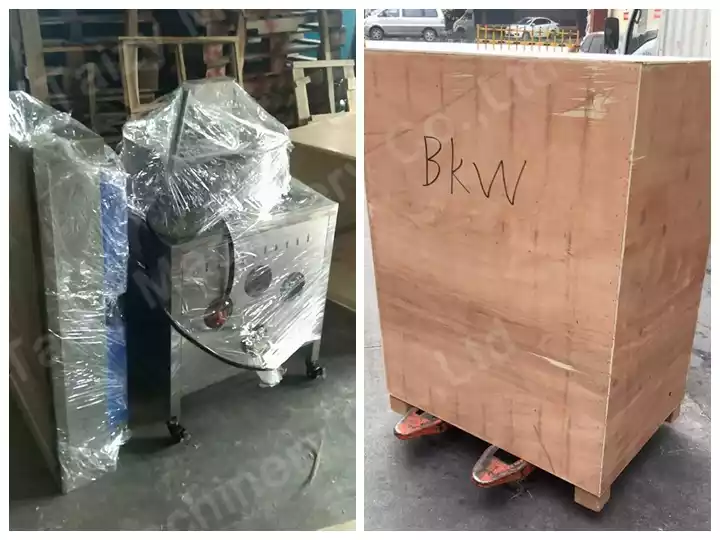

The customer from Cameroon first ordered one popcorn machine for a caramel popcorn processing project. After confirming the model and configuration, we quickly arranged production and carried out strict factory testing. The machine was packed in a wooden crate to ensure safe transport and has now been successfully shipped to Cameroon. The customer is satisfied with the machine quality and delivery speed and plans to purchase a full automatic popcorn production line in the future to expand capacity. Taizy provides services for both single machines and complete production lines.
