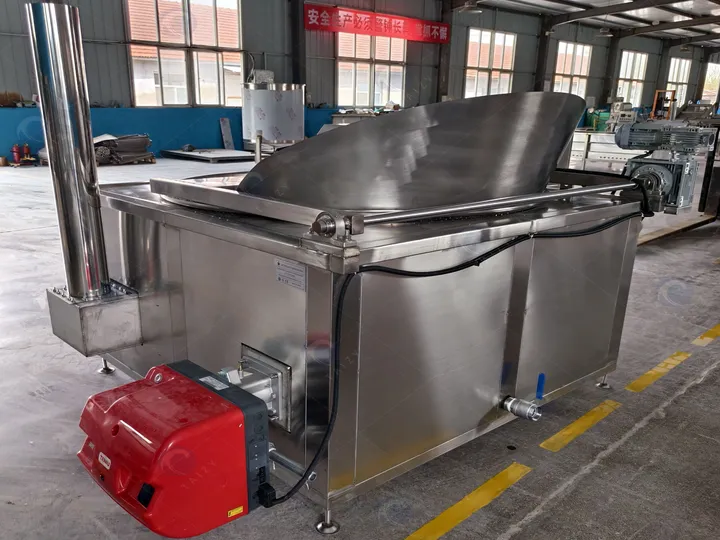

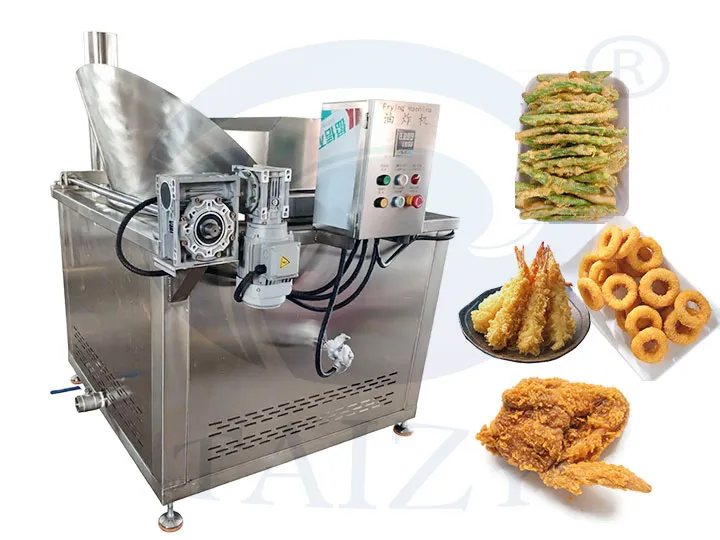

An automatic batch frying machine is a commercial fryer designed to cook fixed batches of food in heated oil. It combines automatic stirring, oil-water separation, and digital temperature control to deliver consistent frying results. The machine is available in 1000 L, 1200 L, and 1500 L models, giving processors a clear capacity path from small tests to larger production runs. It handles raw materials such as potatoes, poultry, meat, dough, and plantains, producing finished foods like potato chips, French fries, fried chicken, meatballs, pastries, and snack foods.
Compared with continuous fryers, a commercial batch fryer handles smaller volumes per load. It is ideal for recipe testing, multi-product shifts, and kitchens with limited floor space. The automatic stirring system prevents product sticking and burning. The oil-water separation design extends oil life and reduces waste.
Our automatic frying machines are built with 304 stainless steel and are available in gas and electric heating versions. They support temperatures from 0 °C to 230 °C and are widely used for potato chips, French fries, fried chicken, meat products, snack foods, and pastries.
Technical Specifications

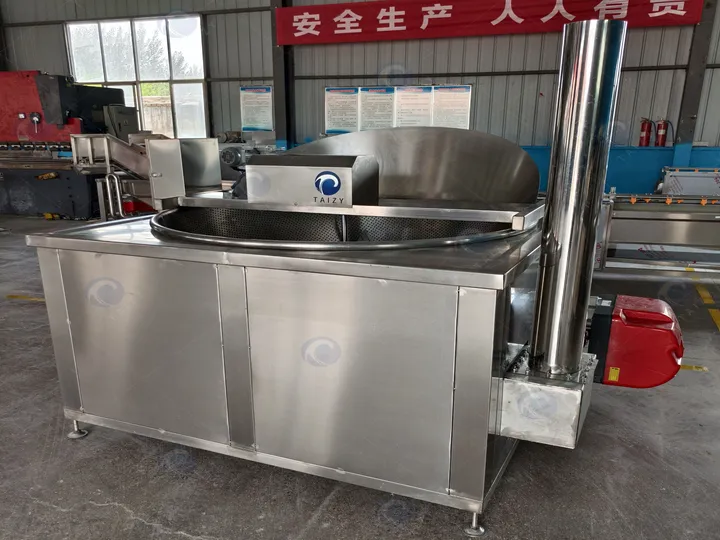

Gas-Heated Automatic Batch Frying Machine
| Model | 1000 | 1200 | 1500 |
|---|---|---|---|
| Dimensions (mm) | 1450 × 1200 × 1700 | 1650 × 1400 × 1700 | 1950 × 1600 × 1700 |
| Discharge power | 0.75 kW | 0.75 kW | 1.1 kW |
| Stirring power | 0.75 kW | 0.75 kW | 1.5 kW |
| Heating power | 100,000 kcal | 200,000 kcal | 200,000 kcal |
| Frying zone size (mm) | 1000 × 350 | 1200 × 350 | 1500 × 350 |
Electric-Heated Automatic Batch Frying Machine
| Model | 1000 | 1200 | 1500 |
|---|---|---|---|
| Dimensions (mm) | 1250 × 1200 × 1700 | 1450 × 1400 × 1700 | 1750 × 1700 × 1700 |
| Discharge power | 0.75 kW | 0.75 kW | 1.5 kW |
| Stirring power | 0.75 kW | 1.1 kW | 1.5 kW |
| Heating power | 54 kW (9 kW × 6) | 63 kW (7 kW × 9) | 72 kW (8 kW × 9) |
| Frying zone size (mm) | 1000 × 350 | 1200 × 350 | 1500 × 350 |
Detailed Equipment Functions

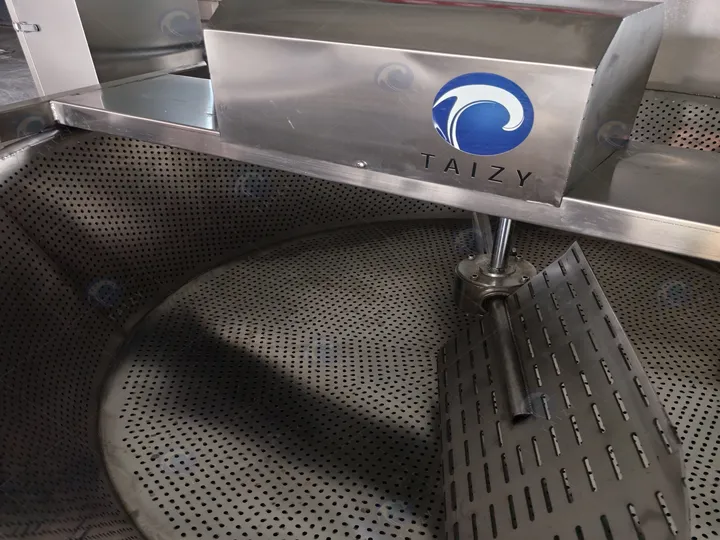

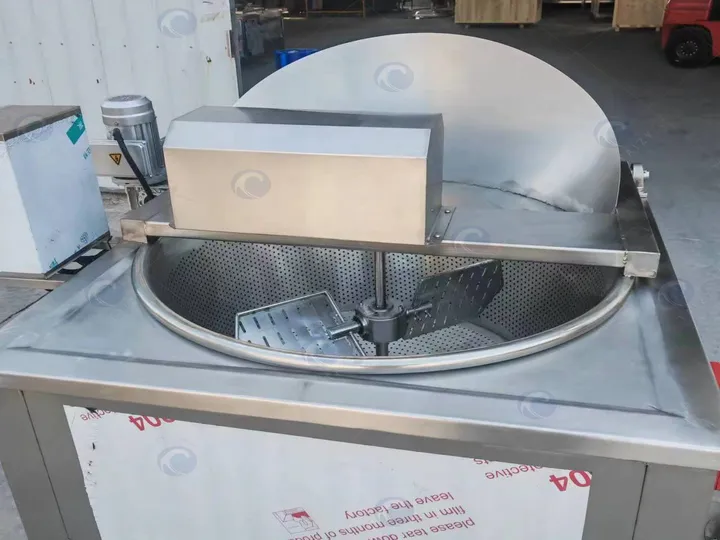

Automatic Stirring
The built-in stirring system moves products evenly through the oil. This prevents sticking, overlapping, and uneven browning. The discharge motor lifts finished batches out of the oil automatically.
Oil-Water Separation
The batch deep fryer uses an oil-water separation design. Water sits below the oil layer. Food residues sink into the water section instead of burning in the hot oil. This keeps the frying oil cleaner for longer.
Digital Temperature Control
Operators can set temperatures between 0 °C and 230 °C. The control system maintains a stable oil temperature throughout the frying cycle. This protects food nutrition and improves batch consistency.
Slag Filtration
Residues collect in the lower water section and are removed through a drain valve. This automatic filtration reduces manual cleaning and keeps oil quality stable across multiple batches.

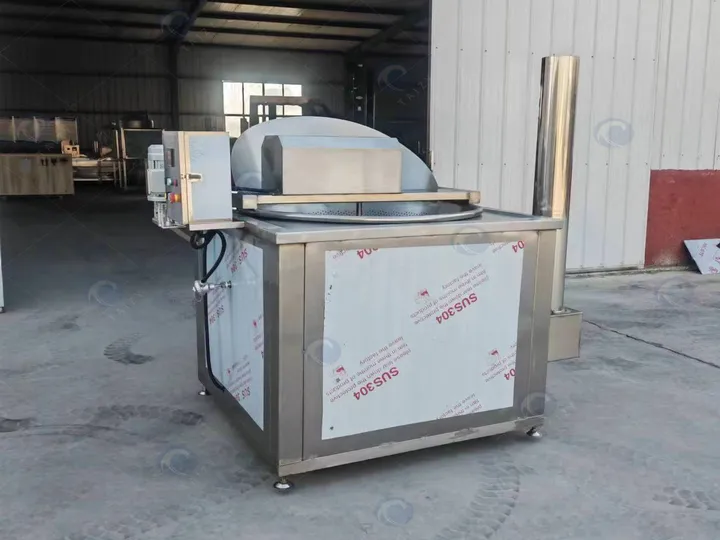

304 Stainless Steel Construction
All food-contact surfaces use 304 stainless steel. The material resists corrosion, supports daily washdown, and meets food safety requirements.
Automatic Discharge
The automatic discharge system lifts the fried products out of the oil after the frying cycle. It helps reduce manual handling, improves operating efficiency, and makes it easier to transfer finished products to the next processing stage.
Raw Materials & Applications
This automatic batch frying machine processes a wide range of foods, including:
- Potato chips and French fries
- Fried chicken and poultry
- Meatballs and battered meat
- Doughnuts and pastries
- Plantain chips and banana chips
- Tempura and breaded seafood
Typical users include snack food factories, central kitchens, catering suppliers, restaurants, and small-scale food startups.
Equipment Advantages
- Oil saving: The oil-water separation design can reduce oil consumption by over 50% compared with traditional fryers.
- Longer oil life: Residues do not burn in the oil layer, so oil stays cleaner and lasts longer.
- No oil acidification: Clean oil prevents flavor problems and reduces waste oil disposal.
- One machine, multiple products: The batch design allows operators to fry different foods in sequence without flavor carryover.
- Single-operator use: Automatic stirring, temperature control, and discharge reduce labor demand.
- Less smoke: Cleaner oil produces less smoke, improving working conditions.
- Better product appearance: Stable temperature and clean oil create golden, evenly fried products.
Working Principle
The automatic batch frying machine works in a simple cycle:
- Oil and water are loaded into separate zones in the tank.
- The heating system raises oil temperature to the set point.
- Raw product is placed into the frying basket.
- The stirring system moves the product during frying.
- Residues fall through the oil into the water layer below.
- The discharge system lifts the finished product out of the oil.
- The operator removes the product for cooling, seasoning, or packing.
The water layer acts as a natural filter. Heavier particles sink and are removed through the drain valve. This protects the oil layer from contamination and extends usable oil life.
Customer Pain Points & Solutions
- Uneven frying. Manual frying creates hot spots and inconsistent color. The automatic stirring and digital temperature control system solve this.
- High oil costs. Traditional fryers waste oil because residues burn and darken it. The oil-water separation system reduces oil use by more than half.
- Frequent oil changes. Clean oil lasts longer. Residue filtration reduces the need for complete oil replacement.
- Cross-flavor problems. Frying fish, meat, and vegetables in the same oil creates mixed flavors. The batch design lets operators change oil or clean between products.
- Labor intensity. Stirring, lifting, and draining by hand is tiring. The automatic discharge and stirring system allow one person to operate the machine.
Why Choose Us?
- 20+ years of experience in food frying equipment manufacturing.
- CE and ISO-compliant production standards.
- Gas and electric options to match your local energy supply.
- 1-year warranty with lifetime technical support.
- Multilingual service team for global customers.
- Spare parts available for motors, heating elements, belts, and control panels.
Frequently Asked Questions
How much product can one batch fry?
Batch capacity depends on the model and product density. The 1000, 1200, and 1500 models refer to frying zone length. Contact us with your product type for a capacity estimate.
How often should I change the oil?
Oil change frequency depends on product type and daily output. Thanks to oil-water separation, many users run several days before a full oil change.
Can I fry meat and vegetables in the same machine?
Yes. The batch design allows you to switch between products. We recommend cleaning the tank between strongly flavored batches.
What voltage options are available?
Standard machines run on 380 V / 50 Hz three-phase power. Other voltages can be customized on request.
How long is the warranty?
We offer a 1-year warranty on the automatic batch frying machine and lifetime technical support.
Is installation included?
We provide English manuals, video guidance, and remote support. On-site installation can be arranged separately if needed.
How do I clean the machine?
Drain the water and oil through the discharge valves. Rinse the 304 stainless steel tank with warm water and a food-safe cleaner.
What is the difference between a batch fryer and a continuous fryer?
A batch fryer cooks one load at a time. A continuous fryer moves product through oil on a conveyor for non-stop output. Batch fryers are better for small volumes and multiple products.
Can I get spare parts easily?
Yes. We stock common spare parts including motors, heating elements, temperature sensors, and control components.
Is operator training provided?
Yes. We provide operation videos and remote training. On-site training is available as an optional service.
Ready to choose the right automatic batch frying machine for your business? Contact us today for a free quote, capacity calculation, and custom heating recommendation.
