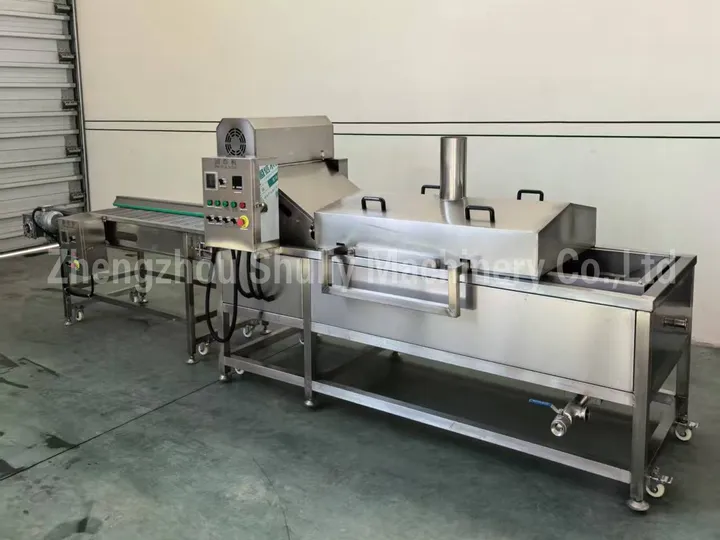

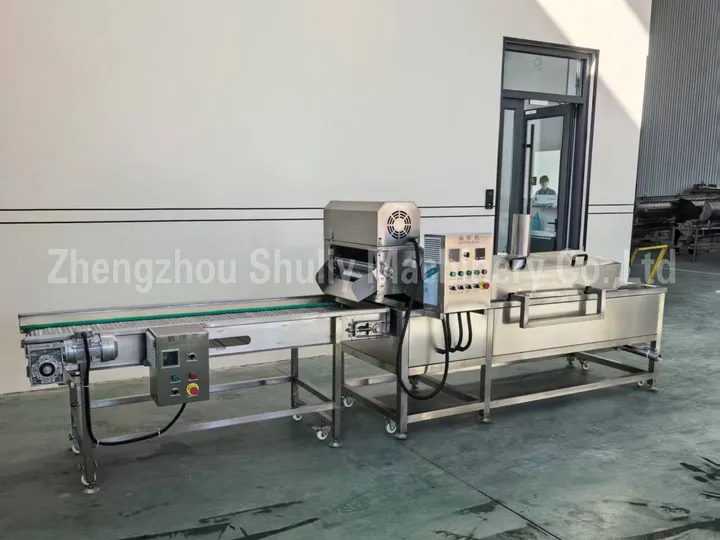

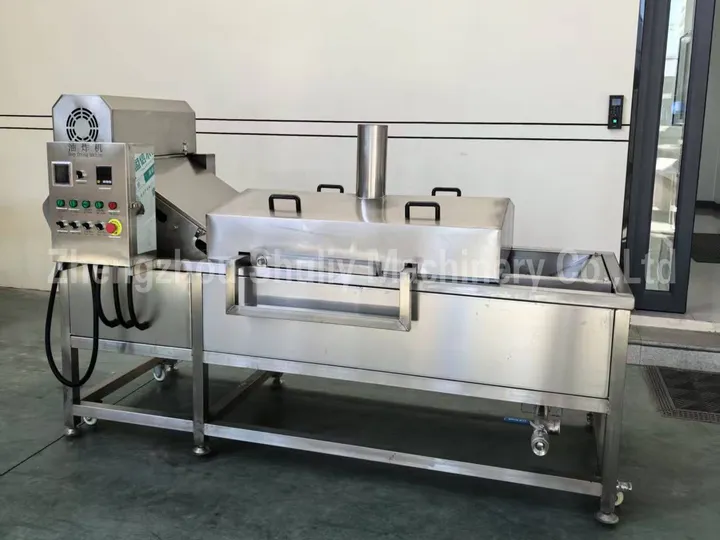

The chicken nuggets frying machine is an industrial continuous mesh belt fryer designed specifically for high-volume production of breaded chicken products. It processes 100-800 kg/h of chicken nuggets, popcorn chicken, chicken strips, and other battered poultry products, delivering consistently golden, crispy results with uniform texture and color. The machine integrates seamlessly into automatic chicken nuggets production lines, handling the critical frying stage after battering and breading processes.
Unlike batch fryers that require manual loading and unloading, this continuous system features automatic mesh belt conveying that moves products through precisely controlled oil temperature zones. The result is higher throughput, reduced labor costs, and standardized product quality that meets fast-food industry specifications. Built with food-grade 304 stainless steel and available with both electric and gas heating options, this fryer serves meat processing plants, fast food suppliers, central kitchens, and frozen food manufacturers worldwide.
Taizy Machinery has manufactured industrial frying equipment for over 20 years, with chicken nugget fryers exported to the USA, UK, Germany, Australia, and Southeast Asia. Our machines carry CE certification and comply with international food safety standards.
Chicken Nuggets Frying Machine Specifications
Our chicken nugget fryers come in six standard models to match different production scales. The TZ-2500 is our best-selling entry-level model for small-to-medium operations, while larger models accommodate industrial-scale production.
| Model | Dimensions (mm) | Mesh Belt Width (mm) | Capacity (kg/h) | Temperature Range (°C) | Power (kW) | Voltage | Heating Type | Material |
|---|---|---|---|---|---|---|---|---|
| TZ-2500 (Best Seller) | 2500 × 1000 × 1300 | 400 / 500 / 600 (Optional) | 100 – 300 | 0 – 300 | 48 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
| TZ-D3000 | 3000 × 950 × 2200 | 800 | 100 – 300 | 0 – 300 | 48 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
| TZ-D4000 | 4200 × 960 × 2400 | 800 | 200 – 400 | 0 – 300 | 75 – 96 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
| TZ-D5000 | 5000 × 950 × 2400 | 800 | 300 – 500 | 0 – 260 | 96 – 120 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
| TZ-D6000 | 6200 × 1100 × 2400 | 1000 | 400 – 600 | 0 – 260 | 120 – 160 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
| TZ-D8000 | 8000 × 1100 × 2600 | 1000 | 300 – 800 | 0 – 260 | 180 – 260 | 380V, 50Hz, 3-Phase | Electric / Gas | 304 Stainless Steel |
Key Notes
- TZ-2500 (Best Seller): Compact 2.5m length with customizable mesh belt widths (400/500/600mm), ideal for small factories and restaurant chains entering chicken nugget production.
- Standard Configuration: All models use 380V 50Hz three-phase power and 304 food-grade stainless steel construction.
- Flexible Heating: Choose electric heating for precise temperature control or gas heating for lower operating costs.
- Custom Sizing: Non-standard dimensions available to fit your facility layout and production requirements.
Key Features & Competitive Advantages
Food-Grade Hygiene Design
All food-contact surfaces use 304 stainless steel that meets FDA and EU food safety standards. The sloped bottom design with dedicated drain ports enables complete oil drainage and thorough cleaning. A built-in oil filtration system.
Precise Temperature Control (±1°C)
The PID temperature control system maintains oil temperature within ±1°C of the setpoint, critical for achieving a consistent golden color and proper internal cooking of chicken nuggets. The system automatically adjusts heating output when the product or overheating that burns coatings.
Dual Heating Options: Electric or Gas
Choose the heating method that fits your operation:
- Electric Heating: Faster heat-up, precise control, ideal for areas with stable electricity and lower gas availability.
- Gas Heating (Natural Gas/LPG): 40-50% lower operating costs in regions with an affordable gas supply, suitable for high-volume continuous production.
Automatic Mesh Belt Conveying System

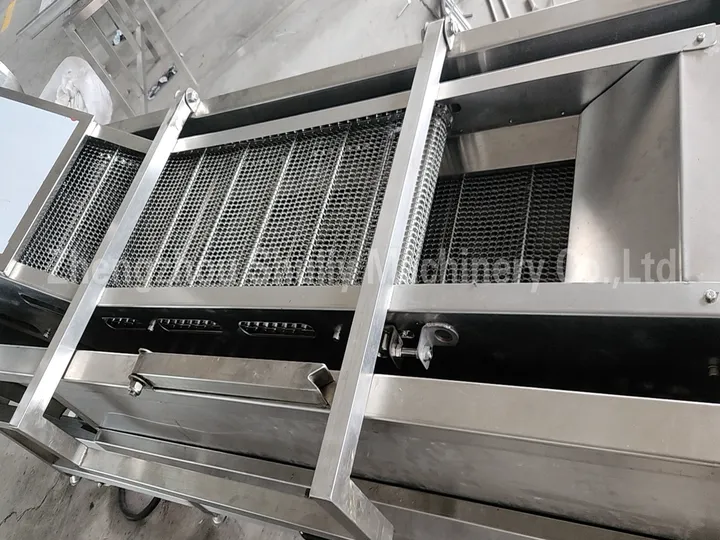

The variable-speed mesh belt (0.5-3 m/min adjustable) controls frying time based on product thickness and coating type. Spiral mesh belts handle breaded products without sticking, while B-type belts suit heavier battered items. The lifting mechanism raises the entire conveyor for deep cleaning and maintenance access.
Oil Filtration & Cost Savings

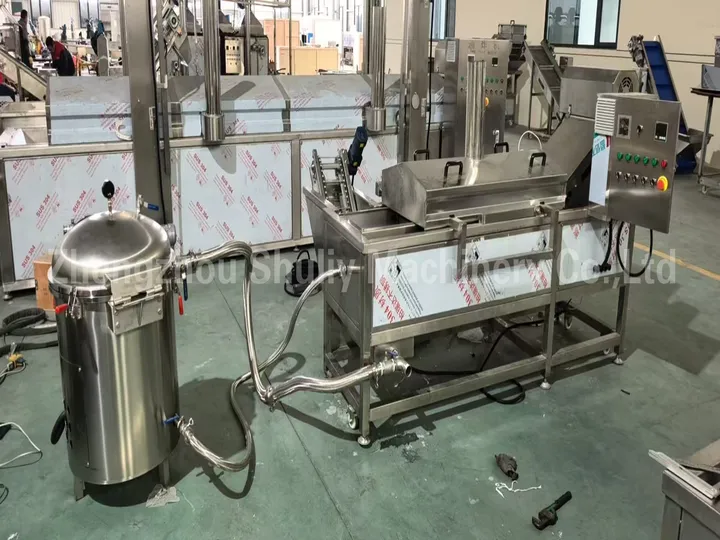

The integrated circulation system continuously filters oil through a high-temperature pump and filter unit, removing breadcrumb particles and extending oil usability. Customers report a 25-35% reduction in oil consumption compared to batch frying operations
Safety Protection System
The machine is equipped with multiple safety features, including automatic overheat protection, an emergency stop button, and flame failure protection for gas heating models. The electrical system meets IP65 waterproof rating standards, ensuring safe operation in humid environments. All heating elements have independent temperature limiters to prevent fire hazards, giving you peace of mind during continuous production.
Structural Advantages of Automatic Frying Machine for Chicken Nuggets
The fully automatic chicken nuggets frying machine is specially designed for industrial use. The structure mainly includes an automatic belt conveying system, lifting system, refueling system, oil temperature control system.
- Frying body: The pot body is made of stainless steel, which meets the requirements of food technology and equipment cleaning. The insulation layer is made of fiber cotton, and the shell is made of brushed stainless steel.
- The conveying system: It is mainly composed of a conveying mesh belt, a reducer, and a mesh belt frame. The conveying system can lift the pot body as a whole, which is convenient for cleaning and maintenance. The mesh belt adopts a spiral mesh belt or B-type mesh belt according to different fried products. Conveyor belt.
- Automatic heating system: mainly composed of an electric heating tube or burner, and a temperature control system
- Circulation filtration system: equipped with the high-temperature oil pump, oil storage tank, oil filter (optional), recirculating frying oil, filtering residue
- Smoke exhaust system: There are two smoke outlets on the side of the fume hood, which can discharge the oil fume in the fryer from the chimney to the outside of the pot. Fan?
- Lifting system: Lift the conveying system (mesh belt frame, mesh belt, electric heating pipe) and the hood to a certain height, which is convenient for cleaning.
- Automatic scraping system: scrape the waste residue at the bottom of the fryer pan to the outside of the pan to prevent carbonization and oxidation of the waste residue at the bottom.
We also provide auxiliary machinery or services, such as fuel tanks, pumps, oil filters, pipes, etc., which will help monitor oil levels, automatically refuel, filter oil, and save more production costs.
How the Chicken Nuggets Frying Machine Works?
The continuous frying process follows a precise sequence to ensure consistent product quality:

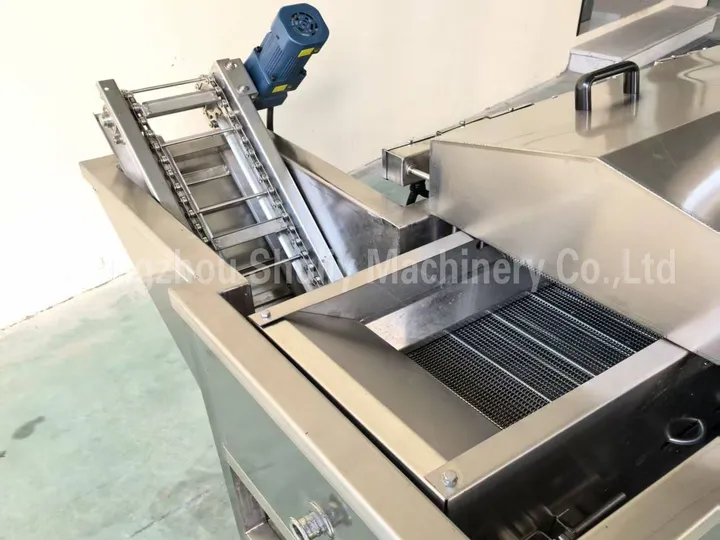

- Product Loading: Battered and breaded chicken nuggets are evenly distributed onto the inlet conveyor, either manually or from an upstream coating machine.
- Submersion Frying: The mesh belt carries products through the oil bath at a controlled speed. Products remain fully submerged with gentle belt movement, preventing sticking.
- Temperature Zones: Multi-zone heating maintains optimal frying temperature (typically 175-185°C for chicken nuggets) throughout the oil bath.
- Oil Circulation: Continuous oil flow through the filter removes particles while maintaining temperature uniformity.
- Discharge & Drainage: Fried products exit via the outlet conveyor. An optional air-blow deoiling station removes excess surface oil before cooling.
Total frying time ranges from 2 to 5 minutes depending on product size, coating thickness, and temperature settings.
Applications & Compatible Products
While designed for chicken nuggets, this fryer handles diverse breaded and battered products:
Poultry Products:
- Breaded chicken nuggets
- Popcorn chicken
- Chicken strips & tenders
- Chicken patties
- Breaded turkey products
Other Applications:
- Fish sticks & fish nuggets
- Onion rings
- French fries (pre-fry stage)
- Breaded vegetables
- Tempura products
Chicken Nuggets Production Line Integration
This fryer integrates as the core component of a complete chicken nuggets production line:
- Meat Forming Machine – Shapes ground chicken into nugget forms
- Battering Machine – Applies wet batter coating
- Breading Machine – Coats with breadcrumbs or tempura flakes
- Chicken Nuggets Frying Machine – Fries to golden perfection (this machine)
- Air Cooling/Deoiling – Removes excess oil and cools for packaging
- Quick Freezer (optional) – IQF freezing for frozen product lines
- Packaging Machine – Weighs and packs finished products
We provide complete line design and integration services to match your capacity and layout requirements.
Customer Success Case-UK Fast Food Supplier
A fast food supply company in Manchester, UK, installed our TZ-D4000 chicken nuggets frying machine in 2023 as part of their production expansion. Previously using batch fryers, they faced inconsistent product quality and labor bottlenecks at a 200 kg/h capacity.
| Item | Details |
|---|---|
| Machine Model | TZ-D4000 (Gas Heating) |
| Application | Chicken Nuggets |
| Capacity | 300 kg/h |
| Installation Date | March 2023 |
| Operating Hours | 16 hours/day, 6 days/week |
| Results | 50% labor reduction; 30% oil savings; consistent color uniformity |
The continuous system transformed our operation. We eliminated the batch-to-batch variation that was causing customer complaints, and the gas heating cut our energy costs significantly compared to our old electric batch fryers.” — Production Manager, UK
Why Choose Taizy Chicken Nuggets Fryers?
Manufacturing Expertise
- 20+ years specialized in food frying equipment
- CE-certified products meeting EU safety standards
- ISO 9001 quality management system
- Exported to 50+ countries, including USA, Germany, UK, Australia, Japan
Comprehensive Support
- 1-year warranty on all components
- Lifetime technical support with video troubleshooting
- Installation guidance and operator training
- Spare parts inventory with 48-hour dispatch
- Multilingual support: English, Spanish, French, Arabic
Customization Services
- Custom dimensions to fit your facility
- Special voltage configurations (220V/415V/480V)
- Additional features: oil level sensors, automatic top-up, CIP cleaning
- Integration with upstream/downstream equipment
FAQ
What is the ideal frying temperature for chicken nuggets?
The optimal frying temperature for breaded chicken nuggets is 175-185°C (350-365°F) . This range ensures the breadcrumb coating develops a golden, crispy texture while the internal chicken reaches a safe minimum temperature of 74°C (165°F). Our fryers maintain temperature within ±1°C for consistent results.
How long does it take to fry chicken nuggets in this machine?
Frying time typically ranges from 2.5 to 4 minutes depending on nugget size, coating thickness, and temperature. The variable-speed conveyor allows precise time control—standard 20g nuggets at 180°C require approximately 3 minutes.
Should I choose electric or gas heating?
Choose electric heating if you prioritize precise temperature control and have stable electricity supply. Choose gas heating if natural gas or LPG is affordable in your region—gas typically reduces operating costs by 40-50% for high-volume operations. Both options provide identical frying performance.
What maintenance does the fryer require?
Daily: Clean debris from mesh belt and empty sludge collector. Weekly: Filter or replace oil; inspect heating elements. Monthly: Deep clean oil tank; check conveyor belt tension; inspect electrical connections. The lifting system allows full access for thorough cleaning.
Can this machine fry other products besides chicken nuggets?
Yes. While optimized for chicken nuggets, the machine handles fish sticks, onion rings, breaded vegetables, popcorn chicken, and other battered/breaded products. Mesh belt type and frying parameters can be adjusted for different products.
What is the delivery time and installation process?
Standard models ship within 15-20 days after order confirmation. Custom models require 25-30 days. We provide detailed installation manuals and video guidance. On-site installation service is available for an additional fee. Most customers complete self-installation in 1-2 days with our remote support.
